Single Acting & Performance-Driven Pneumatic Cylinder
Robust. Reliable. FLUIDTECQ Engineered.
FLUIDTECQ Single Acting Pneumatic Cylinders are designed for demanding industrial applications where reliability, consistent thrust, and long service life are critical. Engineered with spring-return technology, these cylinders deliver smooth linear motion and dependable performance even in harsh operating environments.
With a wide range of bore sizes and customization options, FLUIDTECQ cylinders are ideal for automation, valve actuation, material handling, and heavy-duty industrial operations.

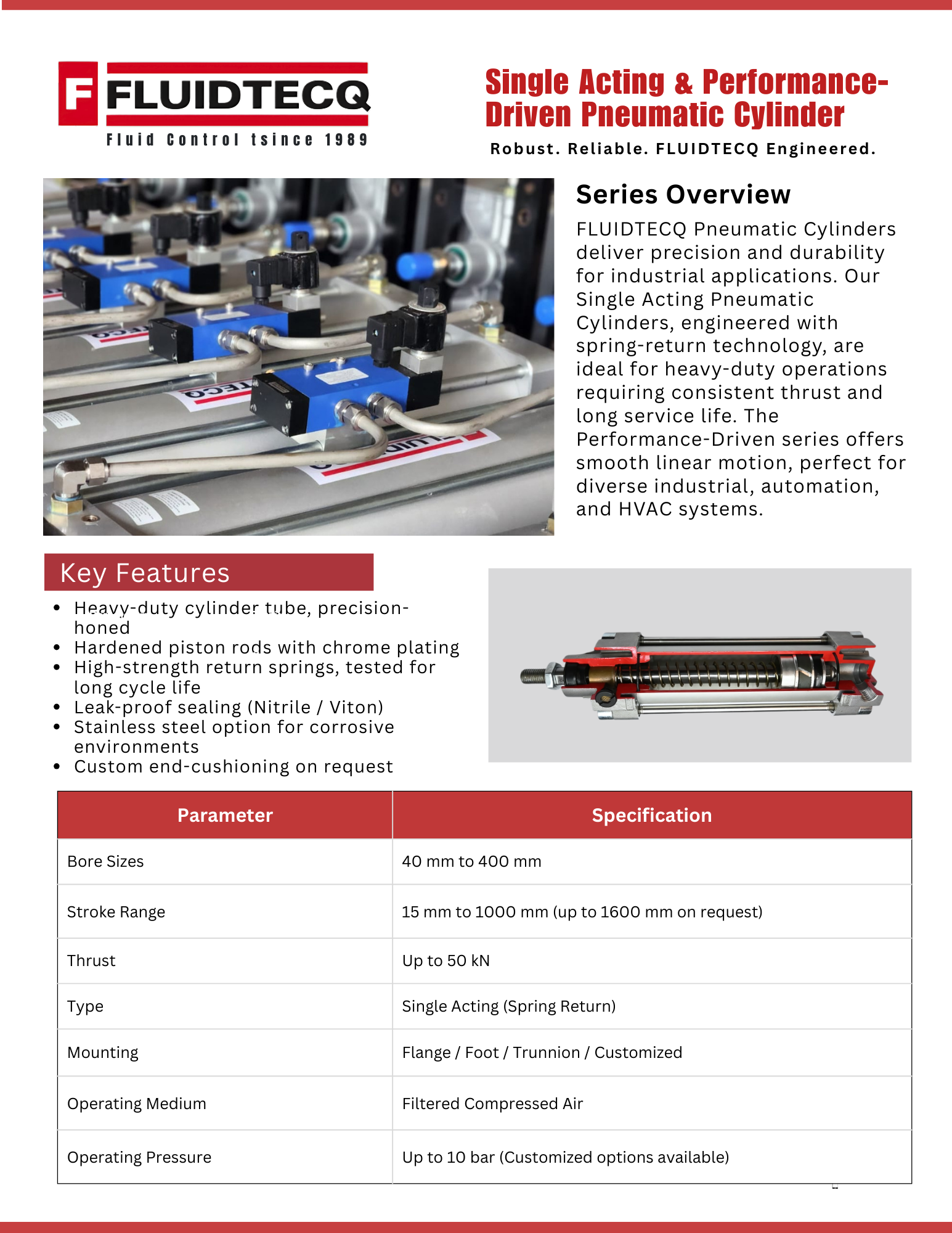

Series Overview
FLUIDTECQ Pneumatic Cylinders deliver precision and durability for industrial use.
Our Single Acting Pneumatic Cylinders feature a robust spring-return mechanism, making them suitable for applications requiring fail-safe operation and consistent force output.
The Performance-Driven series ensures smooth motion, long cycle life, and high reliability—perfect for industrial automation, process control, and HVAC systems.
Key Features
- Heavy-duty, precision-honed cylinder tube
- Hardened piston rods with chrome plating
- High-strength return springs tested for long cycle life
- Leak-proof sealing options (Nitrile / Viton)
- Stainless steel construction available for corrosive environments
- Custom end-cushioning available on request

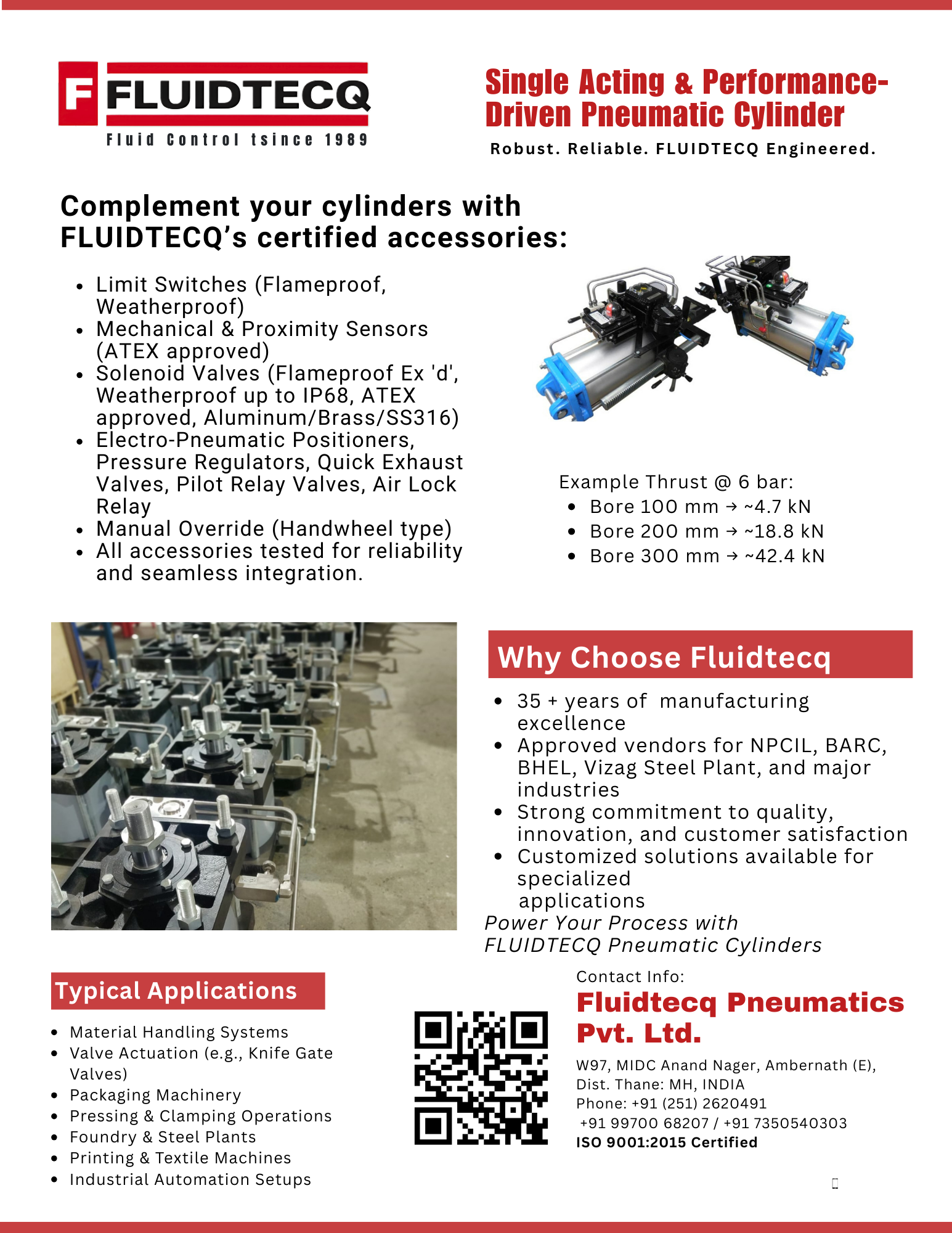

Certified Accessories
Enhance your cylinders with FLUIDTECQ’s certified accessories:
- Limit switches (Flameproof, Weatherproof)
- Mechanical and proximity sensors (ATEX approved)
- Solenoid valves (Flameproof Ex ‘d’, IP68, ATEX approved)
- Electro-pneumatic positioners
- Pressure regulators and quick exhaust valves
- Pilot relay valves and air lock relays
- Manual override (handwheel type)
All accessories are tested for reliability and seamless integration.
Performance Example (at 6 bar)
- Bore 100 mm – approx. 4.7 kN
- Bore 200 mm – approx. 18.8 kN
- Bore 300 mm – approx. 42.4 kN
Technical Specifications
Bore Sizes: 40 mm to 400 mm
Stroke Range: 15 mm to 1000 mm (up to 1600 mm on request)
Thrust: Up to 50 kN
Type: Single Acting (Spring Return)
Mounting Options: Flange / Foot / Trunnion / Customized
Operating Medium: Filtered Compressed Air
Operating Pressure: Up to 10 bar (customized options available)
Typical Applications
- Material handling systems
- Valve actuation (e.g., knife gate valves, dampers)
- Packaging machinery
- Pressing and clamping operations
- Foundry and steel plants
- Printing and textile machinery
- Industrial automation setups
Why Choose FLUIDTECQ
- Over 36 years of manufacturing excellence
- ISO 9001:2015 certified company
- Approved vendor for NPCIL, BARC, BHEL, Vizag Steel Plant, and major industries
- Strong commitment to quality, innovation, and customer satisfaction
- Customized solutions available for specialized applications
Contact Us
Fluidtecq Pneumatics Pvt. Ltd.
W97, MIDC Anand Nagar, Ambernath (E),
Dist. Thane, Maharashtra, India
📞 Phone: +91 (251) 2620491
📱 Mobile: +91 99700 68207 | +91 73505 40303
Power Your Process with FLUIDTECQ Pneumatic Cylinders
