Precision Engineering in Motion: Pneumatic Cylinders & Rotary Actuators
The Muscle Behind India’s Leading Industrial Valve Automation Solutions.
With over 36 years of engineering excellence, Fluidtecq Pneumatics Pvt. Ltd. manufactures high-durability pneumatic cylinders and rotary actuators designed to withstand the harshest industrial environments. From delicate pharmaceutical sorting to heavy-duty slurry valve operation, our automation components deliver the reliability your process demands.

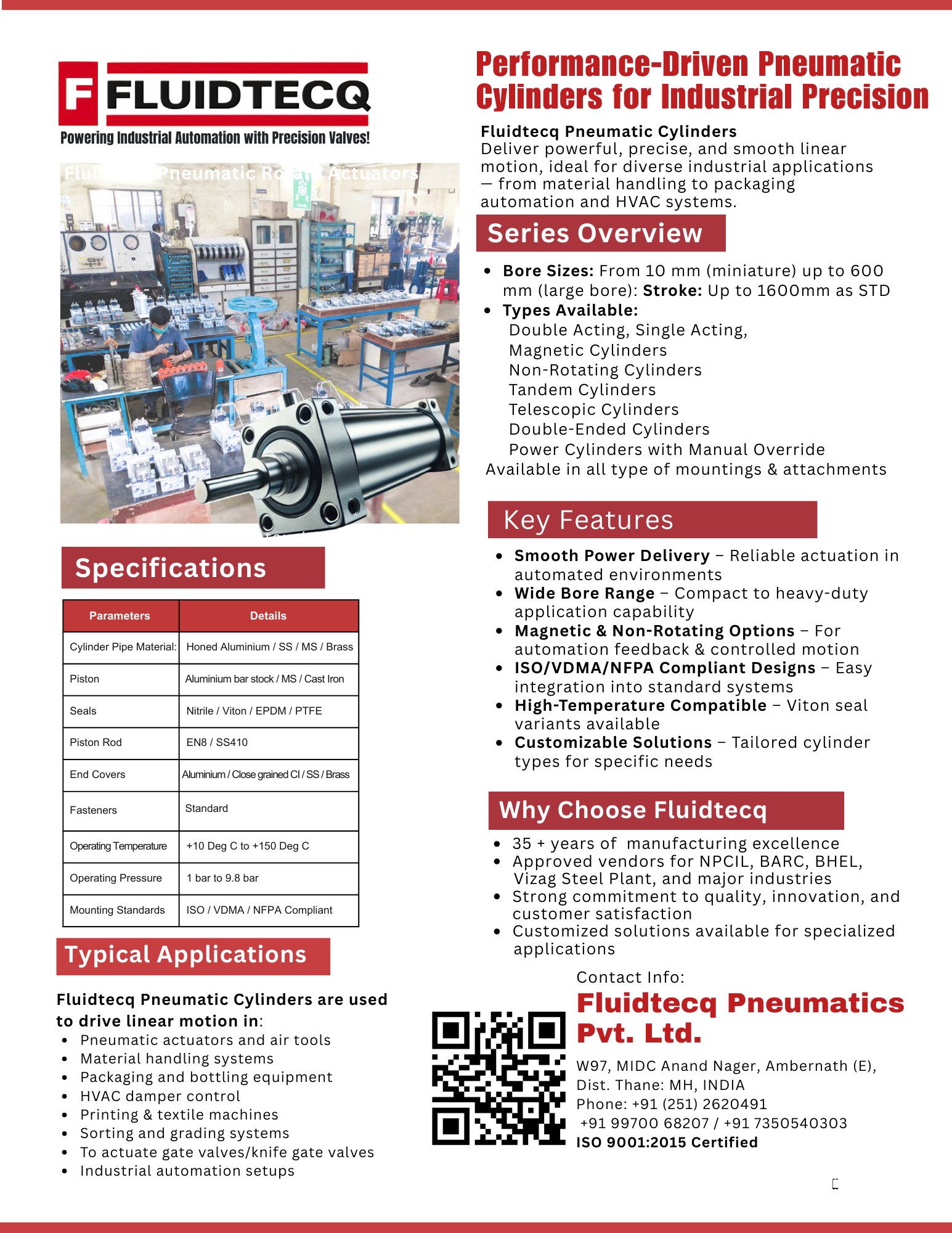

Industrial Pneumatic & Power Cylinders
High-Force Linear Motion for Process Control
Fluidtecq’s range of pneumatic cylinders is engineered for smooth operation and long lifecycle performance. Whether you need a miniature cylinder for light automation or a massive power cylinder for a steel plant damper, we provide custom-fit solutions.
Key Specifications & Features:
- Versatile Bore Sizes: From compact 10mm miniature cylinders to heavy-duty 600mm bore power cylinders.
- Custom Configurations: We manufacture Tandem, Telescopic, and Double-ended cylinders to solve complex spatial challenges.
- High-Temperature Performance: Standard Nitrile seals are available, with Viton seals optional for high-heat industrial applications.
- Safety First: Available with manual overrides to ensure fail-safe operation during air or power loss.
MOC (Materials of Construction): Options include Aluminum jackets, Steel, or full Stainless Steel (AISI 304/316) for corrosive atmospheres.

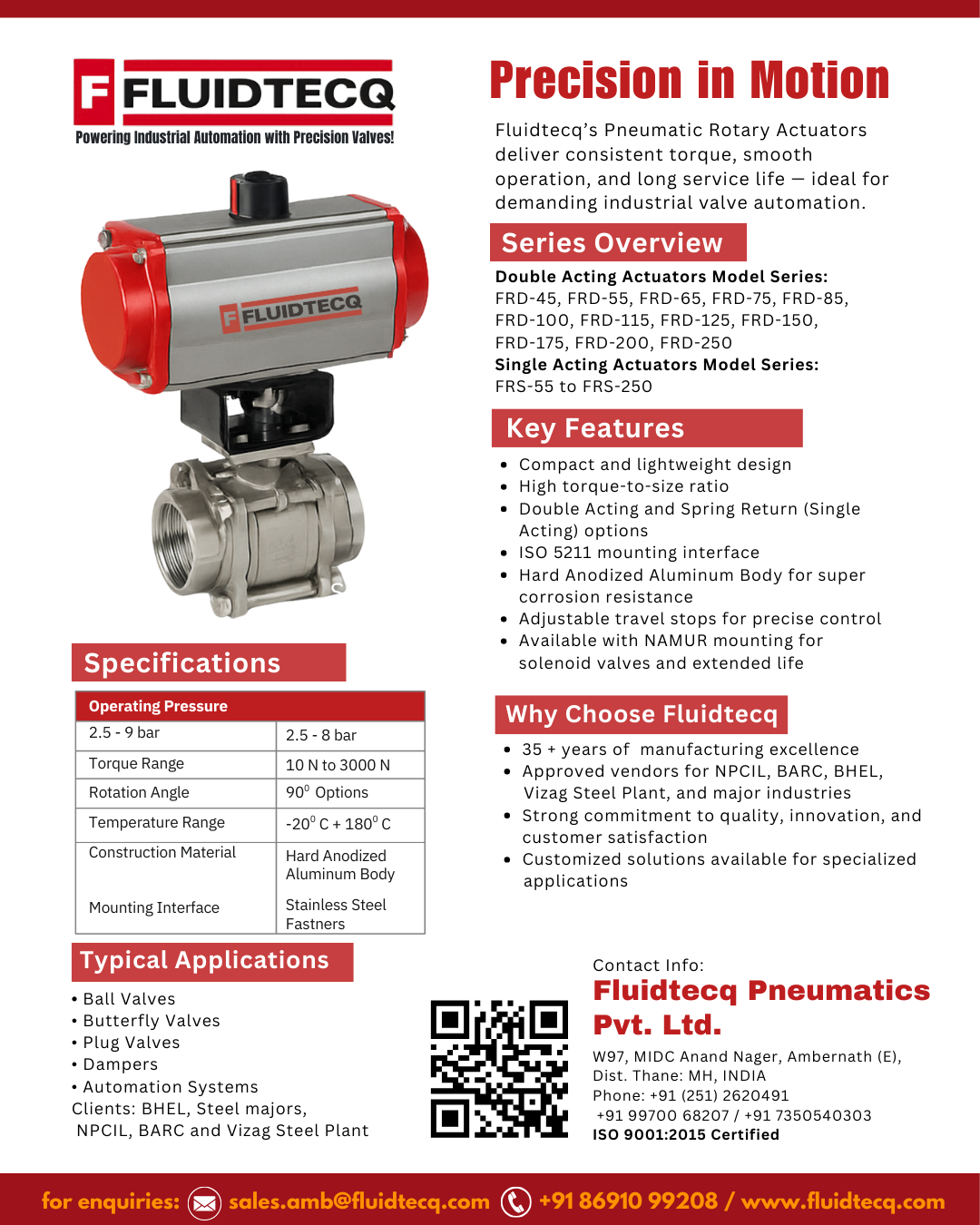

Pneumatic Rotary Actuators
Optimized 90° Torque for Ball & Butterfly Valves
Our rotary actuators are the industry standard for quarter-turn valve automation. Engineered for high cycle rates, they ensure your process lines stay operational with minimal maintenance.
Why Choose Fluidtecq Actuators?
Tested Reliability: Factory tested for over 1 million operations.
Precision Control: Standard 90° rotation with a +/- 10% adjustment capability for perfect valve seating.
Double Rack & Pinion Design: Hard-anodized aluminum body for maximum torque-to-weight ratio and corrosion resistance.
Pharma-Grade Engineering: We offer smooth-body actuators without external crevices, preventing dust accumulation in sanitary and pharmaceutical environments.
NAMUR Standard: Fully compatible with 5/2 way solenoid valves and limit switch boxes for rapid integration.
Turnkey Valve Automation Integration
At Fluidtecq, we don’t just sell components; we provide complete Valve Automation Packages. Our cylinders and actuators are the driving force behind our industry-leading:
- Pneumatic Knife Gate Valves Pneumatic Knife Gate ValvesPneumatic Knife Gate Valves
- Automated Butterfly & Ball ValvesAutomated Butterfly & Ball Valves
- Heavy-Duty HVAC DampersHeavy-Duty HVAC Dampers
- Automation Accessories Available:
- Electro-Pneumatic Positioners (4-20mA)
- Proximity Sensors & Limit Switch Boxes
- Speed Controllers & Silencers
Ready to Automate Your Process?
Fluidtecq is an ISO 9001:2015 certified company trusted by EPC consultants and plant heads across India.
