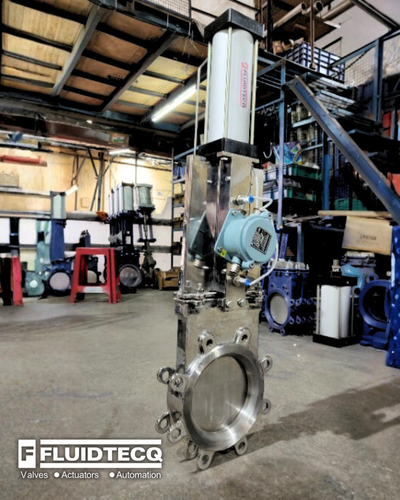

Knife Gate Valves for Dry Powder, Slurries, Fly Ash, Pulp & Paper, and High Suspended Solids.
Fluidtecq Knife Gate Valves for Dry Powder, Slurries, Fly Ash, Pulp & Paper, and High Suspended Solids.
Key Engineering Feature,Value Proposition to the Engineer Heavy-Duty Construction,Reduced maintenance cycle and lower Total Cost of Ownership (TCO). Customisable Sealing,“Options for resilient, metal, or specialty liners (e.g., PU coated) to achieve zero-leakage, even in abrasive slurries.” Full Port & Non-Clogging Design,“Eliminates media build-up, gate jamming, and flow obstruction.” Actuation Flexibility,“Available in Manual, Pneumatic, Hydraulic, or Motorised configurations to integrate seamlessly into your Industrial Automation architecture.“

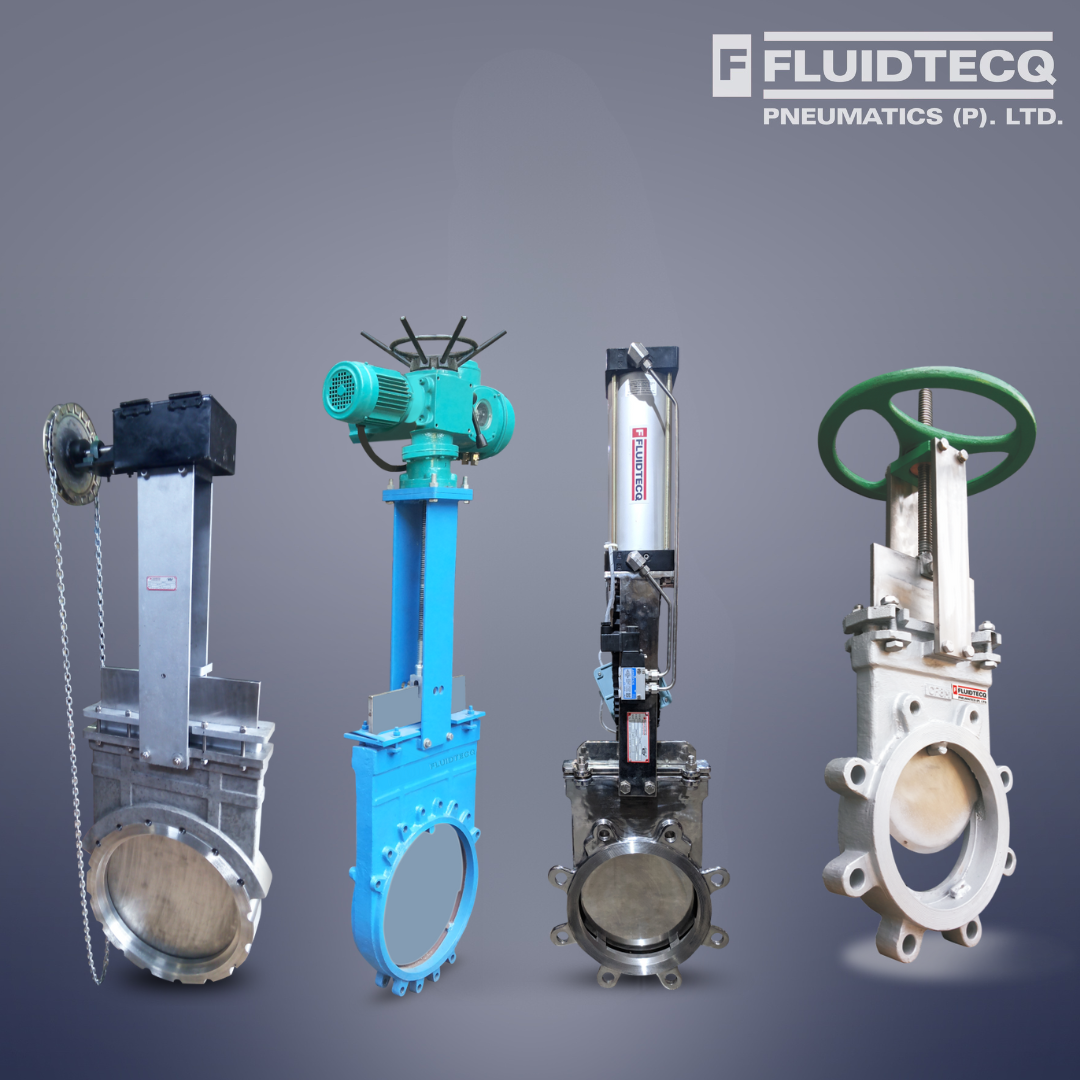

Engineered for the Toughest Services:
Many valve failures in abrasive service stem from Gate Erosion. FLUIDTECQ addresses this by offering specialized Stellited or Chrome Plated Gates. This hardening solution provides superior surface resistance and a tighter seal than relying solely on soft liners, leading to:
1. Extended Service Life.
2. Reduced Maintenance Costs.
3. Reliable, Positive Shut-Off.
Detailed Technical Specifications & Compliance:
Design Compliance | Design and Tested as per MSS SP 81. Testing Standard: API 598 (Recommended). |
Sizing & Performance | Size Range: 50NB to 900NB (Higher sizes on request). Pressure Rating: Available up to 70 bar (depending on size and class). Service: Ideal for both ON/OFF isolation and Throttling applications. |
Port & Body | Type: Uni-Directional / Bi-Directional Wafer Type Design. Ports: Full Round Port and Square Port availability. Body: Casting & Fabricated Designs. |
Flange Drilling | Complies with ANSI B 16.5 / BS TABLE D, E / JIS / DIN standards, ensuring compatibility with virtually any plant infrastructure. |
MOC Matrix (Material of Construction) | Body: C.I., Carbon Steel (WCB), Stainless Steel (SS304, SS316, SS316L, SS317, Duplex Steel). Gate: SS304, SS316, SS316L, SS317, Stellited, Chrome Plated, SS310 . Seals/Packing: EPDM, Nitrile, Viton, or Gland Packing to suit specific media temperatures and chemical compatibility. |
Technical Features & Specifications
MOCs (Body/Gate) | Body: C.I., Carbon Steel (WCB), Stainless Steel (SS304, SS316, SS316L). Gate: SS304, SS316, SS316L, SS317, Stellited, Chrome Plated, SS310 (for high heat/abrasion). Seals: EPDM, Nitrile, Viton, or Metal-to-Metal. |
Design Compliance | Design Standard: Designed and Tested as per MSS SP 81 . Flange Standard: ANSI B 16.5 / BS Table D, E / JIS / DIN standards available. |
Sizing & Configuration | Size Range: 50NB to 1200NB (Higher sizes on request). Type: Uni-Directional / Bi-Directional, Wafer Type Design. Ports: Full Round Port, Square Port. |
Actuation Options | Manual: Handwheel, Chain Wheel, Gear. Automated: Pneumatic Cylinder (Single/Double Acting), Hydraulic, Electric Actuator. |
A Trusted Manufacturer with PAN INDIA Support
Our state-of-the-art manufacturing facility and Head Office are located in Ambernath, Thane (Mumbai Metropolitan Region) . We maintain an extensive inventory to ensure fast delivery and support across India, including Pune, Gujarat, Nagpur, and Hyderabad.
Seamless Automation Integration
Actuation Options | Our Knife Gate Valves are available with: Manual: Handwheel, Chain Wheel, Gear. Automated: Pneumatic Cylinder (Single/Double Acting), Hydraulic, or Electric Actuator. |
FLUIDTECQ Automation Advantage | We also manufacture the associated pneumatic control elements, ensuring perfect compatibility and seamless integration: • Solenoid Valves (2/2, 3/2, 4/2, 5/2 Way) • Limit Switch Boxes (General purpose or Flameproof as per IS 2148-1981, Group II A and IIB). |
Why Choose FLUIDTECQ? (35 Years of Excellence)
35+ years of manufacturing expertise. • ISO 9001:2015 certified company. • Dedicated PAN INDIA presence with factory & HO in Ambernath,
Dist: Thane, MH. • Modern machineries ensure best quality and precision engineering.
